ArchiForma 2 - Editing Tools

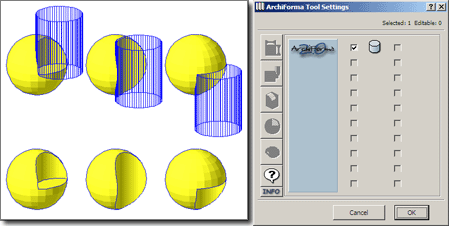

A new tool, the Hole Tool, lets you easily create hole in your ArchiForma elements (any ArchiForma element can be drilled and can contain till to 20 holes maximum).

You can generate holes with any dimension/shape, rotate them in the 3D space and fit them to your ArchiForma elements.

Later, if you need, you can delete the hole in the element, by using the proper dialog window.

The same description fits also for the Cut Tool.

You can create cutting planes both in the Plan and in the 3D window and then decide which side of the element you want to cut/delete (as well as split into two parts).

Also in this case, you can delete the performed cut on the selected elements by using a proper dialog window.
